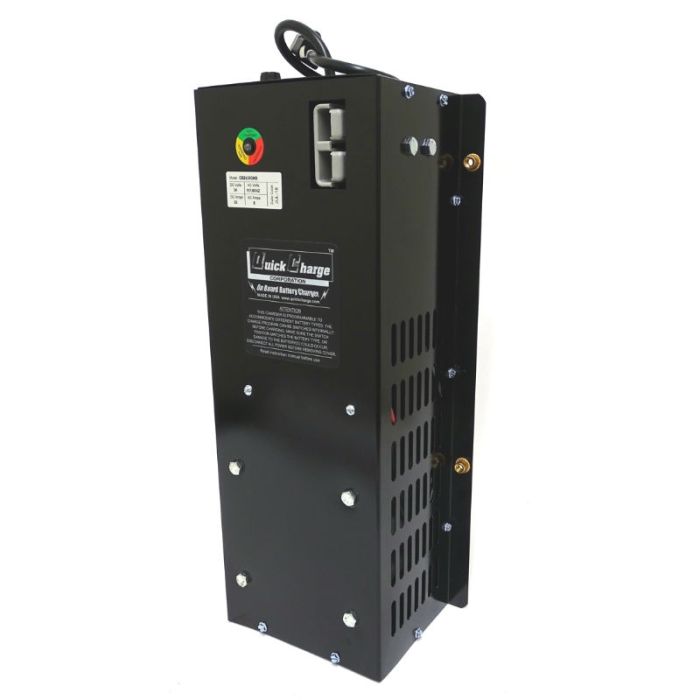

24 Volt GNB Pallet Pro Battery Charger OB2425GNB by Quick Charge
This drop-in ready 24 Volt 25 amp OB2425GNB Quick Charge pallet jack charger replaces the following GNB pallet pro charger: SVR24251205/6 used on Toyota and Raymond lifts. It can also replace Crown pallet Jack model 125322 as well as Hyster SPPMP7501225G.
OB2425GNB Pallet Truck Charger Features:
- Designed to be plug-n-play ready for GNB & Crown Jacks
- Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
- Reverse polarity spark free operation
- No moving parts, and an integral design
- Fully automatic with float maintenance
- Return to charge maintenance mode
- Tough metal cast enclosure
- 3 Year warranty & MADE IN USA
The following Raymond and Toyota lift trucks may use this charger: 6HBW23, 7HBW23, 7BWS10, 7BWS13.
Can work with the following Crown Pallet Truck: 40GPW, 125322
Caterpillar electric jacks: NPP40
Replaces the following GNB Pallet Pro on-board charger: SVR24251205/6
Replaces the following Hyster chargers: SPPMP7501225G (old version)
Used with these ProMatch batteries and charger: A000050861, A000031797; A000028479.
Choose from 4 different charge profiles with this programmable on-board charger. Compatible with most any lead acid, sealed lead acid AGM, or sealed lead acid GEL battery requirements. The Select-A-Charge is temperature compensating, and features an LED indicator for charger status. Best of all, they are made in the USA, with a 3 year warranty. These are built to order by the manufacturer.
| Brand | Quick Charge |
|---|---|
| Model | GNB2425 (OB2425GNB) |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 60 |
| Voltage (VDC) | 24 |
| Input Voltage (VAC) | 120 |
| Output Voltage - Charging (V) | 28 |
| Max AC Current (A) | 7 |
| Output Voltage - Float (V) | 27 |
| Output Banks | 1 |
| Max DC Current (A) | 25 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 3 Year |
| Dimensions (LxWxH - metric) | 444 x 127 x 178 |
| Weight (lb) | 26 |
| Dimensions (LxWxH - inches) | 17.5 x 5.0 x 7 |
