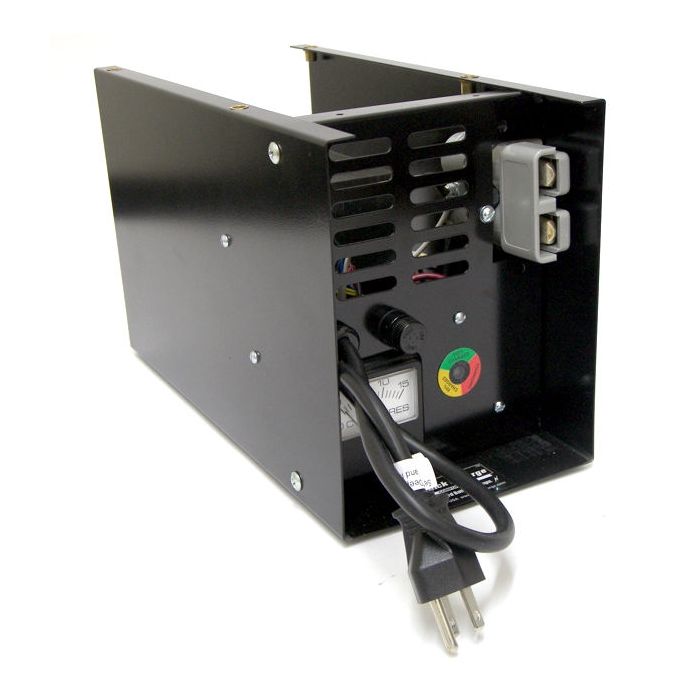

Yale & Crown Pallet Truck Battery Charger CR2415 by Quick Charge (OP24v/15A)
This drop-in ready 24 Volt 15 amp CR2415 (OP24v/15A) Quick Charge electric pallet jack charger is designed to replace the following Crown: 092221-001, 092221-1, 109131-001, 109131-1.If we indicate a build delay, please note that Next Day & 2 Day Air orders go to the front of the line and ship same day.
CR2415 Pallet Truck Charger Features:
- Designed to be plug-n-play ready for Crown
- Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
- Reverse polarity spark free operation
- No moving parts, and an integral design
- Fully automatic with float maintenance
- Return to charge maintenance mode
- Tough metal cast enclosure
- 3 Year warranty & MADE IN USA
Fits the following Crown Electric Pallet truck charger models: 092221-001, 092221-1, 109131-001, 109131-1
Also fits YALE numbers: 2415B1, ET241516B1
Please specify which Anderson connector you require when purchasing.
Choose from 4 different charge profiles with this programmable on-board charger. Compatible with most any lead acid, sealed lead acid AGM, or sealed lead acid GEL battery requirements. The Select-A-Charge is temperature compensating, and features an LED indicator for charger status. Best of all, they are made in the USA, with a 3 year warranty. These are built to order by the manufacturer. (Formerly known by the part number OP24v/15A)
| Brand | Quick Charge |
|---|---|
| Model | CR2415 |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 60 |
| Voltage (VDC) | 24 |
| Input Voltage (VAC) | 120 |
| Output Voltage - Charging (V) | 28 |
| Max AC Current (A) | 4 |
| Output Voltage - Float (V) | 27 |
| Output Banks | 1 |
| Max DC Current (A) | 15 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 3 Year |
| Dimensions (LxWxH - metric) | 298 x 136 x 178 |
| Weight (lb) | 19 |
| Dimensions (LxWxH - inches) | 11.75 x 5.375 x 7 |
